Heavy Veiling and Long Retention Time

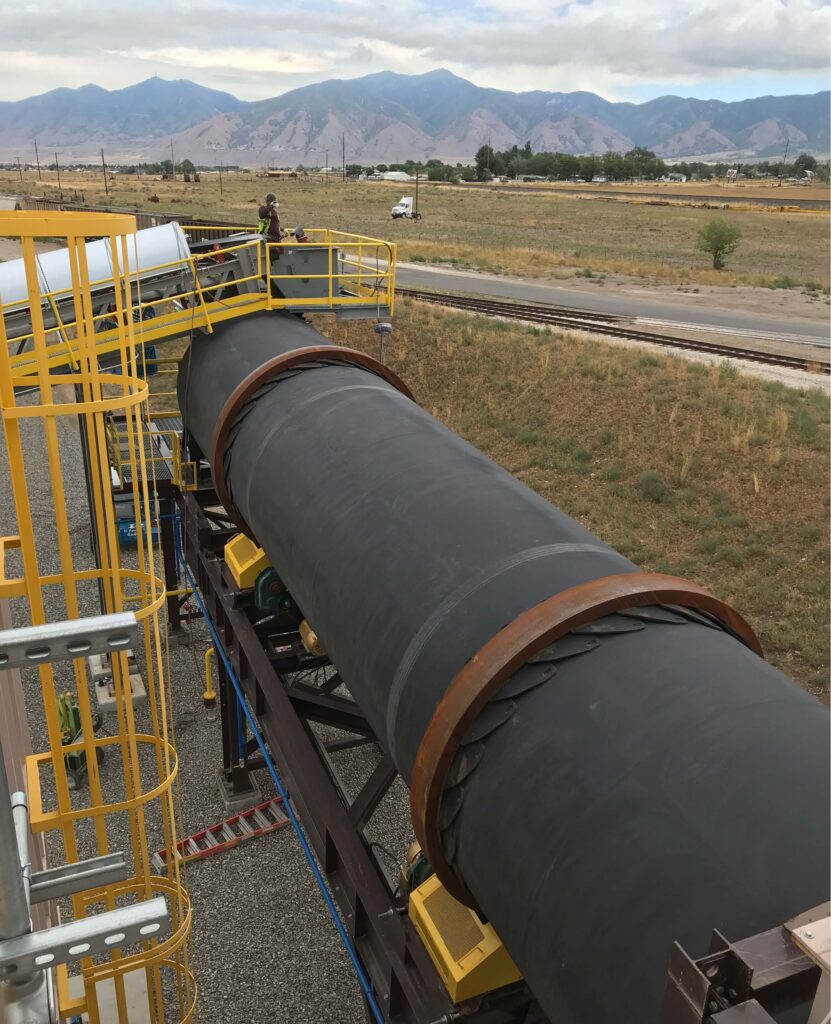

Tarmac COAL Ash Dryers
Tarmac coal ash dryers are used for coal ash and bottom ash also. Our design and engineering staff will work with you. They consider the overall objective and the characteristics of your feed stock. Systems are designed for your project and at the same time meet or exceed all safety and electrical standards.
Tarmac dryers are designed to achieve higher yields and better product. We do this through heavy veiling and long retention time.
Tarmac International, Inc. provides Complete Systems to Dry, Screen, Crush, Classify, and Loadout COAL Ash.
Tarmac COAL Ash Dryers specifications
| DIA x Length | Production | Burner Size | Baghouse |
|---|---|---|---|
| 4.5’ x 30’ | 11 to 15 TPH | 10 BTU | 6,000 ACFM |
| 6.0’ x 30’ | 20 to 27 TPH | 15 BTU | 10,000 ACFM |
| 7.0’ x 30’ | 27 to 36 TPH | 25 BTU | 15,000 ACFM |
| 8.5’ x 50’ | 40 to 53 TPH | 30 BTU | 18,000 ACFM |
| 10’ x 50’ | 55 to 74 TPH | 45 BTU | 26,000 ACFM |
| 11’ x 60’ | 67 to 90 TPH | 55 BTU | 34,000 ACFM |
Assumes 20% moisture by total weight, 350 ft/min gas velocity, 250°f material discharge temperature, 60 lb/ft3, 500′ elevation.
Lower moisture levels will increase production, higher moistures will reduce production.
Tarmac International, Inc. provides Complete Systems to Dry, Screen, Crush, Classify, and Loadout Fly Ash.
Tarmac COAL Ash Dryers specifications
| DIA x Length | Production | Burner Size | Baghouse |
|---|---|---|---|
| 4.5’ x 30’ | 11 to 15 TPH | 10 BTU | 6,000 ACFM |
| 6.0’ x 30’ | 20 to 27 TPH | 15 BTU | 10,000 ACFM |
| 7.0’ x 30’ | 27 to 36 TPH | 25 BTU | 15,000 ACFM |
| 8.5’ x 50’ | 40 to 53 TPH | 30 BTU | 18,000 ACFM |
| 10’ x 50’ | 55 to 74 TPH | 45 BTU | 26,000 ACFM |
| 11’ x 60’ | 67 to 90 TPH | 55 BTU | 34,000 ACFM |
Assumes 20% moisture by total weight, 350 ft/min gas velocity, 250°f material discharge temperature, 60 lb/ft3, 500′ elevation.
Lower moisture levels will increase production, higher moistures will reduce production.
Features and Options
- Trunnion or chain drive
- 1/2″ thick shells
- Tarmac combustion flights keep material from passing through the flame
- Multi-fuel burners (gas, oil, propane)
- MSHA safety walkways and guarding
- Veiling flights are 3/8″ thick and adjustable
- Abrasion resistant T1A Steel used for dryer shell and flights
- Slinger feed conveyors- optional, chute standard
- Refractory lined combustion chamber to reduce carbon monoxide (CO) if required
- Portable, skid mounted, or stationary units
